HPawn

HPawn is a simpler Pawn implementation with a basic pawn-like implementation. Aimed for custom pawns not based on the Advanced functionality found in HPawn.

💂Authority

This class can be spawned on both 🟧 Client and 🟦 Server side (if you spawn it on client, it won't be synchronized with other players).

👪Inheritance

This class shares methods and events from Base Entity, Base Actor, Base Paintable, Damageable, Pawn.

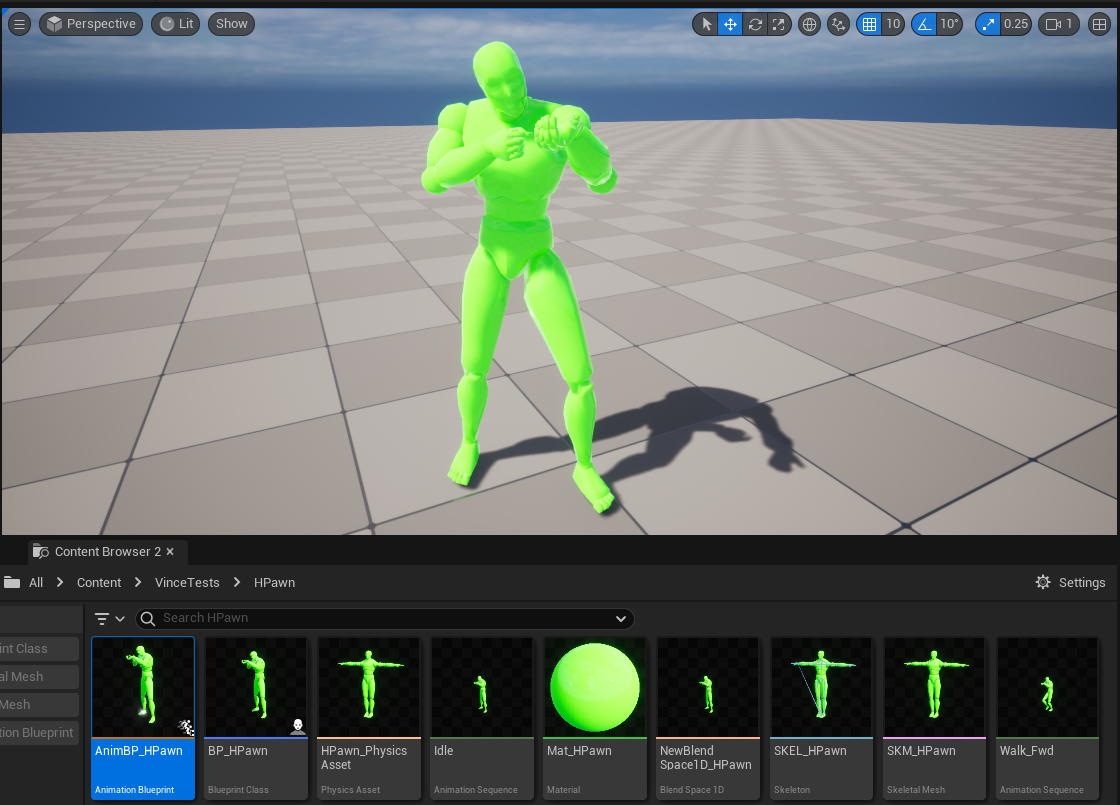

💡 HPawn uses a series of Classes from the Helix Framework to Unreal Engine that make up what we refer to as HPawn and it can constructed via Pawn().

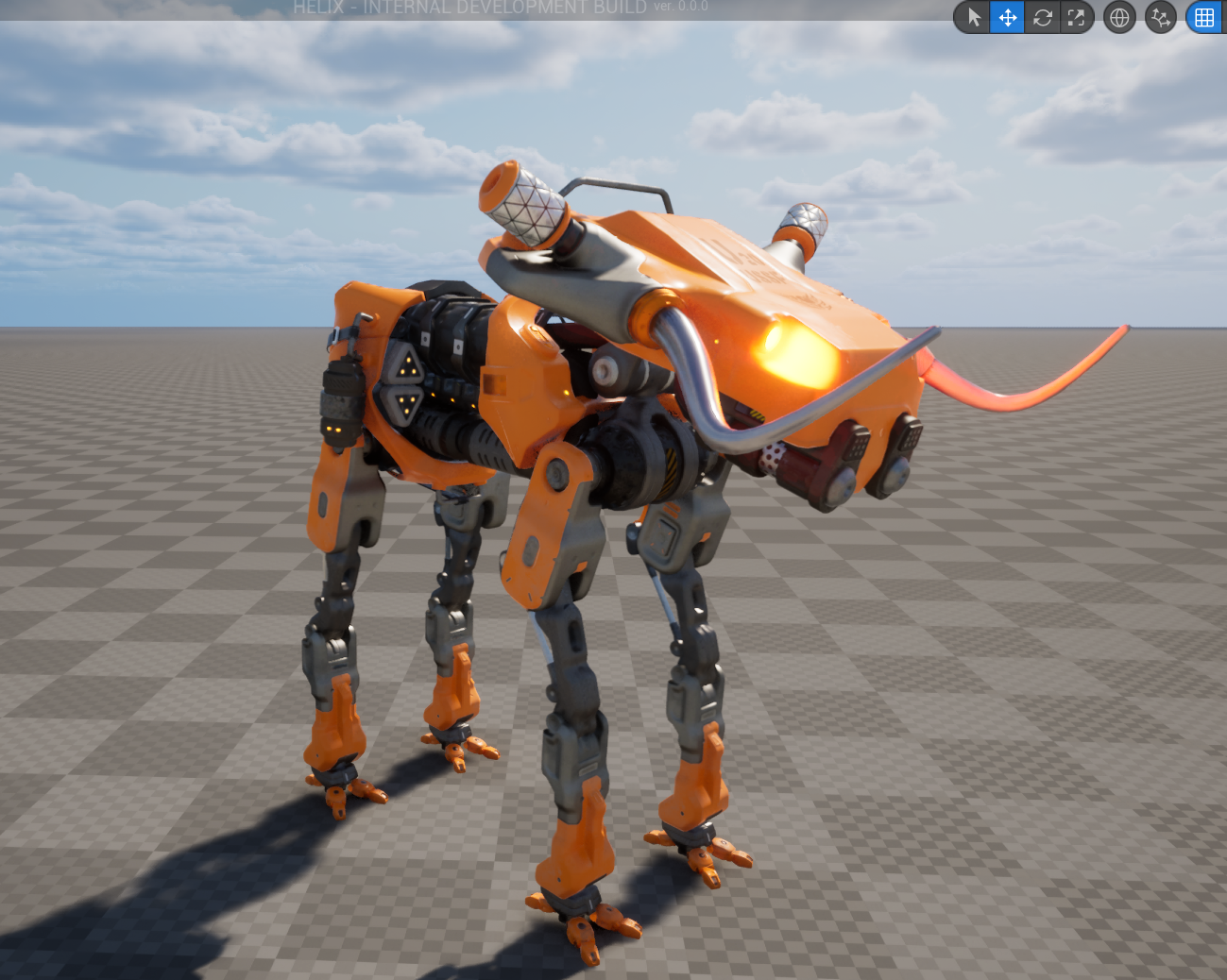

HPawn is simple by design and therefore can support exotic characters like the marketplace asset seen above.

Simple Construction of HPawn

Server/Index.lua
-- Spawns an base Pawn
local base_pawn = Pawn(Vector(100, 0, 100), Rotator(0, 0, 0), "helix::SK_None")

Advanced Construction of HPawn

⚠️ You need to specify your own SK_Pawn and AnimBP_Pawn if you want to use a custom Skeletal Mesh and AnimationBP. Otherwise use: helix::SK_None

Server/Index.lua
--- Spawns a Green Man and updates construction properties
local green_man = Pawn(Vector(0, 0, 0), Rotator(0, 0, 0), "helix::SK_Pawn", "helix::AnimBP_Pawn")

green_man:SetMesh("helix::SK_Pawn", true)
green_man:SetAnimationBlueprint("helix::AnimBP_Pawn")

green_man:SetGravityScale(1)
green_man:SetJumpZVelocity(420)
green_man:SetCanCrouch(true)
green_man:SetCanJump(true)
green_man:SetCapsuleSize(48, 96)

green_man:SetBrakingSettings(8, 2, 2048, 0, 0, 0)
green_man:SetMaxAcceleration(2048)
green_man:SetSpringArmSettings(Vector(0, 0, 144), 300, Vector(0, 0, 0), true, 15)
green_man:SetRotationSettings(Rotator(0, 360, 0), false, true)
green_man:SetSpeedSettings(600, 300)
green_man:SetPawnSettings(false, false, false)

Simple Construction of HPawn with Posession

Spawns and Posesses HPawn with an active PlayerController with a SkeletalMesh: SK_BullMech and AnimationBP: ABP_BullMech.

Server/Index.lua
-- Spawns an base Pawn
local base_pawn = Pawn(Vector(100, 0, 100), Rotator(0, 0, 0), "helix::SK_BullMech", "helix::ABP_BullMech")
player:Possess(base_pawn)

Code Snippet

Add the following code to Server/Index.lua file inside the package.

Server/Index.lua

-- Function to spawn a Pawn to a player
function SpawnPawn(player)
    -- Spawns a Pawn at position 1, 0, 100 with default's constructor parameters
    local new_pawn = Pawn(Vector(1, 0, 100), Rotator(0, 0, 0), "helix::SK_HPawn", "helix::ABP_HPawn")
    new_pawn:AddStaticMeshAttached("prop", "helix::SM_Cube")
    new_pawn:SetCapsuleSize(32, 64)
    new_pawn:SetCanCrouch(false)
    -- Possess the new Pawn
    player:Possess(new_pawn)
end

-- Subscribes to an Event which is triggered when Players join the server (i.e. Spawn)
Player.Subscribe("Spawn", SpawnPawn)

-- Iterates for all already connected players and give them a Pawn as well
-- This will make sure you also get a Pawn when you reload the package
Package.Subscribe("Load", function()
    for k, player in pairs(Player.GetAll()) do
        SpawnPawn(player)
    end
end)

Constructors

Server/Index.lua
local my_pawn = Pawn(location, rotation, mesh, custom_animation_blueprint?, collision_type?, gravity_enabled?)

Default Constructor

local my_hpawn = HPawn(location, rotation, mesh, custom_animation_blueprint?, collision_type?, gravity_enabled?)

Type	Name	Default
Vector	`location`
Rotator	`rotation`
SkeletalMesh Reference or StaticMesh Reference	`mesh`
Blueprint Reference	`custom_animation_blueprint`
CollisionType	`collision_type`	`CollisionType.Normal`
boolean	`gravity_enabled`	`true`

Static Functions

Inherited Entity Static Functions

Base Entityscripting-reference/classes/base-classes/Entity

Returns	Name	Description
table of Base Entity	`GetAll`	Returns a table containing all Entities of the class this is called on
Base Entity	`GetByIndex`	Returns a specific Entity of this class at an index
integer	`GetCount`	Returns how many Entities of this class exist
iterator	`GetPairs`	Returns an iterator with all Entities of this class to be used with `pairs()`
table	`Inherit`	Inherits this class with the Inheriting System
table of table	`GetInheritedClasses`	Gets a list of all directly inherited classes from this Class created with the Inheriting System
table or nil	`GetParentClass`	Gets the parent class if this Class was created with the Inheriting System
boolean	`IsChildOf`	Gets if this Class is child of another class if this Class was created with the Inheriting System
function	`Subscribe`	Subscribes to an Event for all entities of this Class
function	`SubscribeRemote`	Subscribes to a custom event called from server
	`Unsubscribe`	Unsubscribes all callbacks from this Event in this Class within this Package, or only the callback passed

This entity doesn't have own static functions.

Functions

Inherited Entity Functions

Base Entityscripting-reference/classes/base-classes/Entity

Returns	Name	Description
integer	`GetID`	Gets the universal network ID of this Entity (same on both client and server)
table	`GetClass`	Gets the class of this entity
boolean	`IsA`	Recursively checks if this entity is inherited from a Class
function	`Subscribe`	Subscribes to an Event on this specific entity
function	`SubscribeRemote`	Subscribes to a custom event called from server on this specific entity
	`Unsubscribe`	Unsubscribes all callbacks from this Event in this Entity within this Package, or only the callback passed
	`SetValue`	Sets a Value in this Entity
any	`GetValue`	Gets a Value stored on this Entity at the given key
	`Destroy`	Destroys this Entity
boolean	`IsValid`	Returns true if this Entity is valid (i.e. wasn't destroyed and points to a valid Entity)
	`CallRemoteEvent`	Calls a custom remote event directly on this entity to a specific Player
	`CallRemoteEvent`	Calls a custom remote event directly on this entity
	`BroadcastRemoteEvent`	Calls a custom remote event directly on this entity to all Players

Inherited Actor Functions

Base Actorscripting-reference/classes/base-classes/Actor

Returns	Name	Description
	`AddImpulse`	Applies a force in world world to this Actor
	`AttachTo`	Attaches this Actor to any other Actor, optionally at a specific bone
	`Detach`	Detaches this Actor from AttachedTo Actor
	`SetCollision`	Sets this Actor's collision type
	`SetDimension`	Sets this Actor's Dimension
	`SetForce`	Adds a permanent force to this Actor, set to Vector(0, 0, 0) to cancel
	`SetGravityEnabled`	Sets whether gravity is enabled on this Actor
	`SetVisibility`	Sets whether the actor is visible or not
	`SetHighlightEnabled`	Sets whether the highlight is enabled on this Actor, and which highlight index to use
	`SetOutlineEnabled`	Sets whether the outline is enabled on this Actor, and which outline index to use
	`SetLifeSpan`	Sets the time (in seconds) before this Actor is destroyed. After this time has passed, the actor will be automatically destroyed.
	`SetLocation`	Sets this Actor's location in the game world
	`SetRotation`	Sets this Actor's rotation in the game world
	`SetRelativeLocation`	Sets this Actor's relative location in local space (only if this actor is attached)
	`SetRelativeRotation`	Sets this Actor's relative rotation in local space (only if this actor is attached)
	`SetScale`	Sets this Actor's scale
	`SetNetworkAuthority`	Sets the Player to have network authority over this Actor
	`SetNetworkAuthorityAutoDistributed`	Sets if this Actor will auto distribute the network authority between players
	`TranslateTo`	Smoothly moves this actor to a location over a certain time
	`RotateTo`	Smoothly rotates this actor to an angle over a certain time
boolean	`IsBeingDestroyed`	Returns true if this Actor is being destroyed
boolean	`IsVisible`	Returns true if this Actor is visible
boolean	`IsGravityEnabled`	Returns true if gravity is enabled on this Actor
boolean	`IsInWater`	Returns true if this Actor is in water
boolean	`IsNetworkDistributed`	Returns true if this Actor is currently network distributed
table of Base Actor	`GetAttachedEntities`	Gets all Actors attached to this Actor
Base Actor or nil	`GetAttachedTo`	Gets the Actor this Actor is attached to
table	`GetBounds`	Gets this Actor's bounds
CollisionType	`GetCollision`	Gets this Actor's collision type
Vector	`GetLocation`	Gets this Actor's location in the game world
Vector	`GetRelativeLocation`	Gets this Actor's Relative Location if it's attached
Player or nil	`GetNetworkAuthority`	Gets this Actor's Network Authority Player
Rotator	`GetRotation`	Gets this Actor's angle in the game world
Rotator	`GetRelativeRotation`	Gets this Actor's Relative Rotation if it's attached
Vector	`GetForce`	Gets this Actor's force (set by `SetForce()`)
integer	`GetDimension`	Gets this Actor's dimension
boolean	`HasNetworkAuthority`	Returns true if the local Player is currently the Network Authority of this Actor
boolean	`HasAuthority`	Gets if this Actor was spawned by the client side
Vector	`GetScale`	Gets this Actor's scale
Vector	`GetVelocity`	Gets this Actor's current velocity
	`AddActorTag`	Adds an Unreal Actor Tag to this Actor
	`RemoveActorTag`	Removes an Unreal Actor Tag from this Actor
table of string	`GetActorTags`	Gets all Unreal Actor Tags on this Actor
boolean	`WasRecentlyRendered`	Gets if this Actor was recently rendered on screen
float	`GetDistanceFromCamera`	Gets the distance of this Actor from the Camera
float	`GetScreenPercentage`	Gets the percentage of this Actor size in the screen

Inherited Paintable Functions

Base Paintablescripting-reference/classes/base-classes/Paintable

	Returns	Name	Description
		`SetMaterial`	Sets the material at the specified index of this Actor
		`SetMaterialFromCanvas`	Sets the material at the specified index of this Actor to a Canvas object
		`SetMaterialFromSceneCapture`	Sets the material at the specified index of this Actor to a SceneCapture object
		`SetMaterialFromWebUI`	Sets the material at the specified index of this Actor to a WebUI object
		`ResetMaterial`	Resets the material from the specified index to the original one
		`SetMaterialColorParameter`	Sets a Color parameter in this Actor's material
		`SetMaterialScalarParameter`	Sets a Scalar parameter in this Actor's material
		`SetMaterialTextureParameter`	Sets a texture parameter in this Actor's material to an image on disk
		`SetMaterialVectorParameter`	Sets a Vector parameter in this Actor's material
		`SetPhysicalMaterial`	Overrides this Actor's Physical Material with a new one

Inherited Damageable Functions

Base Damageablescripting-reference/classes/base-classes/Damageable

Returns	Name	Description
integer	`ApplyDamage`	Do damage to this entity
integer	`GetHealth`	Gets the current health
integer	`GetMaxHealth`	Gets the Max Health
	`Respawn`	Respawns the Entity, fullying it's Health and moving it to it's Initial Location
	`SetHealth`	Sets the Health of this Entity
	`SetMaxHealth`	Sets the MaxHealth of this Entity

Returns	Name	Description
	`PlayAnimation`	Plays an Animation Montage on this Pawn
	`StopAnimation`	Stops an Animation Montage on this Pawn
	`AddSkeletalMeshAttached`	Spawns and Attaches a SkeletalMesh into this Pawn
	`AddStaticMeshAttached`	Spawns and Attaches a StaticMesh into this Pawn
	`RemoveSkeletalMeshAttached`	Removes, if existing, a SkeletalMesh from this Pawn given it's custom ID
	`RemoveStaticMeshAttached`	Removes, if existing, a StaticMesh from this Pawn given it's custom ID
	`RemoveAllStaticMeshesAttached`	Removes all StaticMeshes attached
	`RemoveAllSkeletalMeshesAttached`	Removes all SkeletalMeshes attached
	`SetMesh`	Changes the Pawn Mesh on the fly
SkeletalMesh Reference or StaticMesh Reference	`GetMesh`	Gets the Skeletal Mesh Asset
Vector	`GetMovingTo`	Gets the Moving To location
	`MoveTo`	AI: Makes this Pawn to walk to the Location
	`Follow`	AI: Makes this Pawn to follow another actor
	`StopMovement`	AI: Stops the movement
Player or nil	`GetPlayer`	Gets the possessing Player
Rotator	`GetControlRotation`	Gets the Control Rotation
	`HideBone`	Hides a bone of this Pawn
	`UnHideBone`	UnHide a bone of this Pawn
boolean	`IsBoneHidden`	Gets if a bone is hidden
	`Jump`	Triggers this Pawn to jump
	`SetJumpZVelocity`	Sets the velocity of the jump
	`SetMaxAcceleration`	Sets the max acceleration
	`SetCapsuleSize`	Sets this Pawn's Capsule size
	`SetCanJump`	Sets if this Pawn is allowed to Jump
	`SetCanCrouch`	Sets if this Pawn is allowed to Crouch and to Prone
	`SetBrakingSettings`	Sets the Movement Braking Settings of this Pawn
	`SetSpringArmSettings`	Sets the Spring Arm Settings of this Pawn
	`SetRotationSettings`	Sets the Rotation Settings of this Pawn
	`SetSpeedSettings`	Sets the Speed Settings of this Pawn
	`SetPawnSettings`	Sets the Pawn Settings of this Pawn
	`SetAnimationBlueprint`	Sets the Animation Blueprint of this Pawn

`PlayAnimation`

Plays an Animation Montage on this Pawn

my_hpawn:PlayAnimation(animation_path, slot_name?, loop_indefinitely?, blend_in_time?, blend_out_time?, play_rate?, stop_all_montages?)

Type	Parameter	Default	Description
Animation Reference	`animation_path`
string	`slot_name?`
boolean	`loop_indefinitely?`	`false`
float	`blend_in_time?`	`0.25`
float	`blend_out_time?`	`0.25`
float	`play_rate?`	`1.0`
boolean	`stop_all_montages?`	`false`	Stops all running Montages from the same Group

`StopAnimation`

Stops an Animation Montage on this Pawn

my_hpawn:StopAnimation(animation_asset)

Type	Parameter	Default	Description
Animation Reference	`animation_asset`

`AddSkeletalMeshAttached`

Spawns and Attaches a SkeletalMesh into this Pawn, the SkeletalMesh must have the same Skeletal used by the Pawn Mesh, and will follow all animations from it. Uses a custom ID to be used for removing it further.

For customizing the Materials specific of a SkeletalMeshAttached, please use the following syntax in the Paintable methods: attachable///[ATTACHABLE_ID]/[PARAMETER_NAME], where [ATTACHABLE_ID] is the ID of the Attachable, and [PARAMETER_NAME] is the name of the parameter you want to change.

my_hpawn:AddSkeletalMeshAttached(id, skeletal_mesh_asset?)

Type	Parameter	Default	Description
string	`id`		Used further for removing or applying material settings on it
SkeletalMesh Reference	`skeletal_mesh_asset?`

`AddStaticMeshAttached`

Spawns and Attaches a StaticMesh into this Pawn in a Socket with relative Location and Rotation. Uses a custom ID to be used for removing it further

For customizing the Materials specific of a StaticMeshAttached, please use the following syntax as the parameter_name in the Paintable methods: attachable///[ATTACHABLE_ID]/[PARAMETER_NAME], where [ATTACHABLE_ID] is the ID of the Attachable, and [PARAMETER_NAME] is the name of the parameter you want to change.

my_hpawn:AddStaticMeshAttached(id, static_mesh_asset?, socket?, relative_location?, relative_rotation?)

Type	Parameter	Default	Description
string	`id`		Used further for removing or applying material settings on it
StaticMesh Reference	`static_mesh_asset?`
string	`socket?`
Vector	`relative_location?`	`Vector(0, 0, 0)`
Rotator	`relative_rotation?`	`Rotator(0, 0, 0)`

`RemoveSkeletalMeshAttached`

Removes, if existing, a SkeletalMesh from this Pawn given it's custom ID

my_hpawn:RemoveSkeletalMeshAttached(id)

Type	Parameter	Default	Description
string	`id`

`RemoveStaticMeshAttached`

Removes, if existing, a StaticMesh from this Pawn given it's custom ID

my_hpawn:RemoveStaticMeshAttached(id)

Type	Parameter	Default	Description
string	`id`

`RemoveAllStaticMeshesAttached`

Removes all StaticMeshes attached

my_hpawn:RemoveAllStaticMeshesAttached()

`RemoveAllSkeletalMeshesAttached`

Removes all SkeletalMeshes attached

my_hpawn:RemoveAllSkeletalMeshesAttached()

`SetMesh`

Changes the Pawn Mesh on the fly

my_hpawn:SetMesh(mesh_asset, adjust_capsule_size)

Type	Parameter	Default	Description
SkeletalMesh Reference or StaticMesh Reference	`mesh_asset`
boolean	`adjust_capsule_size`		Auto adjust the capsule size based on the Mesh size

`GetMesh`

Gets the Skeletal Mesh Asset

— Returns SkeletalMesh Reference or StaticMesh Reference.

local ret = my_hpawn:GetMesh()

`GetMovingTo`

Gets the Moving To location

— Returns Vector (the moving to location or Vector(0, 0, 0) if not moving).

local ret = my_hpawn:GetMovingTo()

`MoveTo`

AI: Makes this Pawn to walk to the Location

Triggers event MoveCompleted

my_hpawn:MoveTo(location, acceptance_radius?)

Type	Parameter	Default	Description
Vector	`location`
float	`acceptance_radius?`	`50`

`Follow`

AI: Makes this Pawn to follow another actor

Triggers event MoveCompleted

my_hpawn:Follow(actor, acceptance_radius?, stop_on_succeed?, stop_on_fail?, update_rate?)

Type	Parameter	Default	Description
Base Actor	`actor`		Actor to follow
float	`acceptance_radius?`	`50`	Radius to consider success
boolean	`stop_on_succeed?`	`false`	Whether to stop when reaching the target
boolean	`stop_on_fail?`	`false`	Whether to stop when failed to reach the target
float	`update_rate?`	`0.25`	How often to recalculate the AI path

`StopMovement`

AI: Stops the movement

Triggers event [MoveCompleted](Pawn#movecompleted)

my_hpawn:StopMovement()

`GetPlayer`

Gets the possessing Player

— Returns Player or nil.

local ret = my_hpawn:GetPlayer()

`GetControlRotation`

Gets the Control Rotation

— Returns Rotator.

local ret = my_hpawn:GetControlRotation()

`HideBone`

Hides a bone of this Pawn.

Check Bone Names List

my_hpawn:HideBone(bone_name?)

Type	Parameter	Default	Description
string	`bone_name?`		Bone to hide

`UnHideBone`

UnHide a bone of this Pawn.

Check Bone Names List

my_hpawn:UnHideBone(bone_name)

Type	Parameter	Default	Description
string	`bone_name`		Bone to unhide

`IsBoneHidden`

Gets if a bone is hidden

— Returns boolean (if the bone is hidden).

local ret = my_hpawn:IsBoneHidden(bone_name)

Type	Parameter	Default	Description
string	`bone_name`		Bone to check

`Jump`

Triggers this Pawn to jump

my_hpawn:Jump()

`SetJumpZVelocity`

Sets the velocity of the jump

my_hpawn:SetJumpZVelocity(velocity)

Type	Parameter	Default	Description
integer	`velocity`		Default is 450

`SetMaxAcceleration`

Sets the max acceleration

my_hpawn:SetMaxAcceleration(acceleration)

Type	Parameter	Default	Description
integer	`acceleration`		Default is 2048

`SetCapsuleSize`

Sets this Pawn's Capsule size (will affect Camera location and Pawn's collision)

my_hpawn:SetCapsuleSize(radius, half_height)

Type	Parameter	Default	Description
integer	`radius`		Default is 42
integer	`half_height`		Default is 96

`SetCanJump`

Sets if this Pawn is allowed to Jump

my_hpawn:SetCanJump(can_jump)

Type	Parameter	Default	Description
boolean	`can_jump`

`SetCanCrouch`

Sets if this Pawn is allowed to Crouch and to Prone

my_hpawn:SetCanCrouch(can_crouch)

Type	Parameter	Default	Description
boolean	`can_crouch`

`SetBrakingSettings`

Sets the Movement Braking Settings of this Pawn

my_hpawn:SetBrakingSettings(ground_friction?, braking_friction_factor?, braking_walking?, braking_flying?, braking_swimming?, braking_falling?)

Type	Parameter	Default
float	`ground_friction?`	`2`
float	`braking_friction_factor?`	`2`
integer	`braking_walking?`	`96`
integer	`braking_flying?`	`3000`
integer	`braking_swimming?`	`10`
integer	`braking_falling?`	`0`

`SetSpringArmSettings`

Sets the Spring Arm Settings of this Pawn

my_hpawn:SetSpringArmSettings(relative_location, target_arm_length, socket_offset, enable_camera_lag, camera_lag_speed)

Type	Parameter	Default	Description
Vector	`relative_location`
float	`target_arm_length`
Vector	`socket_offset`
boolean	`enable_camera_lag`
float	`camera_lag_speed`

`SetRotationSettings`

Sets the Rotation Settings of this Pawn

my_hpawn:SetRotationSettings(rotation_rate, use_controller_desired_rotation, orient_rotation_to_movement)

Type	Parameter	Default	Description
Rotator	`rotation_rate`
boolean	`use_controller_desired_rotation`
boolean	`orient_rotation_to_movement`

`SetSpeedSettings`

Sets the Speed Settings of this Pawn

my_hpawn:SetSpeedSettings(max_walk_speed, max_walk_speed_crouched)

Type	Parameter	Default	Description
integer	`max_walk_speed`
integer	`max_walk_speed_crouched`

`SetPawnSettings`

Sets the Pawn Settings of this Pawn

my_hpawn:SetPawnSettings(use_controller_rotation_pitch, use_controller_rotation_yaw, use_controller_rotation_roll)

Type	Parameter	Default	Description
boolean	`use_controller_rotation_pitch`
boolean	`use_controller_rotation_yaw`
boolean	`use_controller_rotation_roll`

`SetAnimationBlueprint`

Sets the Animation Blueprint of this Pawn

my_hpawn:SetAnimationBlueprint(custom_animation_blueprint)

Type	Parameter	Default	Description
Blueprint Reference	`custom_animation_blueprint`

Events

Inherited Entity Events

Base Entityscripting-reference/classes/base-classes/Entity

	Name	Description
	`Spawn`	Triggered when an Entity is spawned/created
	`Destroy`	Triggered when an Entity is destroyed
	`ValueChange`	Triggered when an Entity has a value changed with `:SetValue()`
	`ClassRegister`	Triggered when a new Class is registered with the Inheriting System

Inherited Actor Events

Base Actorscripting-reference/classes/base-classes/Actor

	Name	Description
	`Spawn`	Triggered when an Entity is spawned/created
	`Destroy`	Triggered when an Entity is destroyed
	`ValueChange`	Triggered when an Entity has a value changed with `:SetValue()`
	`ClassRegister`	Triggered when a new Class is registered with the Inheriting System

Inherited Damageable Events

Base Damageablescripting-reference/classes/base-classes/Damageable

	Name	Description
	`Spawn`	Triggered when an Entity is spawned/created
	`Destroy`	Triggered when an Entity is destroyed
	`ValueChange`	Triggered when an Entity has a value changed with `:SetValue()`
	`ClassRegister`	Triggered when a new Class is registered with the Inheriting System

	Name	Description
	`Possess`	When Pawn is possessed
	`UnPossess`	When Pawn is unpossessed

`Possess`

When Pawn is possessed

HPawn.Subscribe("Possess", function(self, possesser)
	-- Possess was called
end)

Type	Argument	Description
HPawn	`self`
Player	`possesser`

`UnPossess`

When Pawn is unpossessed

HPawn.Subscribe("UnPossess", function(self, old_possesser)
	-- UnPossess was called
end)

Type	Argument	Description
HPawn	`self`
Player	`old_possesser`

Simple Construction of HPawn​

Advanced Construction of HPawn​

Simple Construction of HPawn with Posession​

Code Snippet​

Constructors​

Default Constructor​

Static Functions​

Functions​

PlayAnimation​

StopAnimation​

AddSkeletalMeshAttached​

AddStaticMeshAttached​

RemoveSkeletalMeshAttached​

RemoveStaticMeshAttached​

RemoveAllStaticMeshesAttached​

RemoveAllSkeletalMeshesAttached​

SetMesh​

GetMesh​

GetMovingTo​

MoveTo​

Follow​

StopMovement​

GetPlayer​

GetControlRotation​

HideBone​

UnHideBone​

IsBoneHidden​

Jump​

SetJumpZVelocity​

SetMaxAcceleration​

SetCapsuleSize​

SetCanJump​

SetCanCrouch​

SetBrakingSettings​

SetSpringArmSettings​

SetRotationSettings​

SetSpeedSettings​

SetPawnSettings​

SetAnimationBlueprint​

Events​

Possess​

UnPossess​

Simple Construction of HPawn

Advanced Construction of HPawn

Simple Construction of HPawn with Posession

Code Snippet

Constructors

Default Constructor

Static Functions

Functions

`PlayAnimation`

`StopAnimation`

`AddSkeletalMeshAttached`

`AddStaticMeshAttached`

`RemoveSkeletalMeshAttached`

`RemoveStaticMeshAttached`

`RemoveAllStaticMeshesAttached`

`RemoveAllSkeletalMeshesAttached`

`SetMesh`

`GetMesh`

`GetMovingTo`

`MoveTo`

`Follow`

`StopMovement`

`GetPlayer`

`GetControlRotation`

`HideBone`

`UnHideBone`

`IsBoneHidden`

`Jump`

`SetJumpZVelocity`

`SetMaxAcceleration`

`SetCapsuleSize`

`SetCanJump`

`SetCanCrouch`

`SetBrakingSettings`

`SetSpringArmSettings`

`SetRotationSettings`

`SetSpeedSettings`

`SetPawnSettings`

`SetAnimationBlueprint`

Events

`Possess`

`UnPossess`
